One-step Waste Plastic Pallet Molding Machine

In order to better recycle waste plastics, Guowang Eco has developed a new type of waste plastic pallet molding machine / plastic pallet pressing machine. This process does not require granulation and can directly produce the desired plastic pallet products.

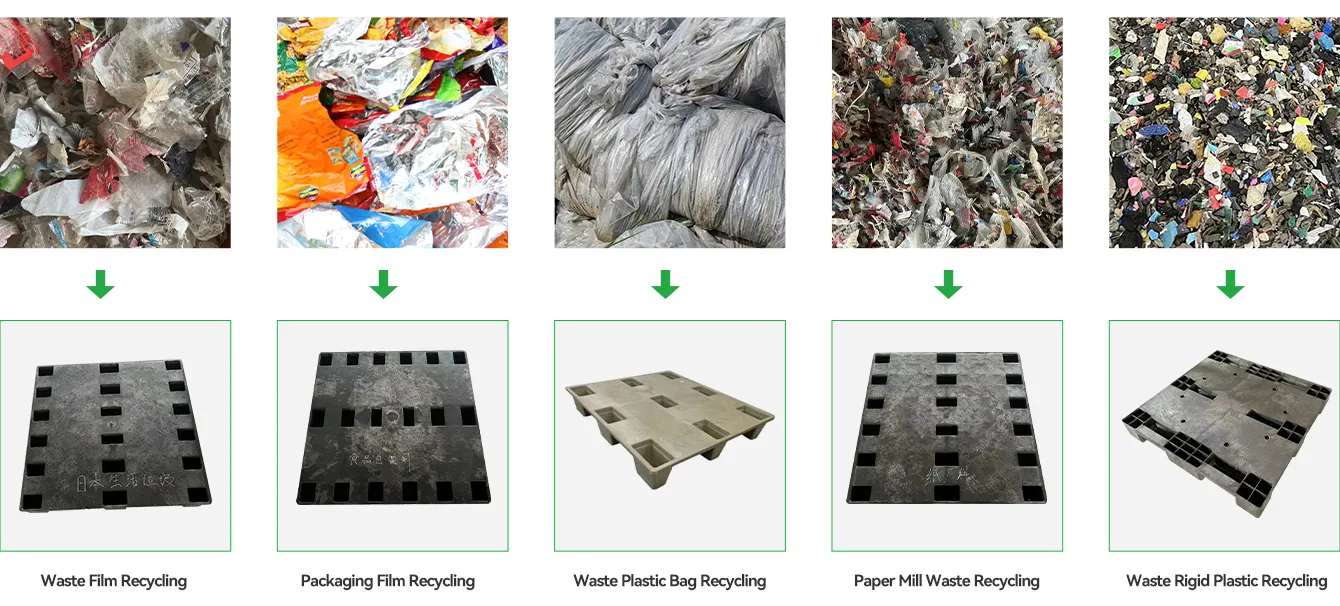

Waste Plastic Pallet Pressing machine Recycling Materials

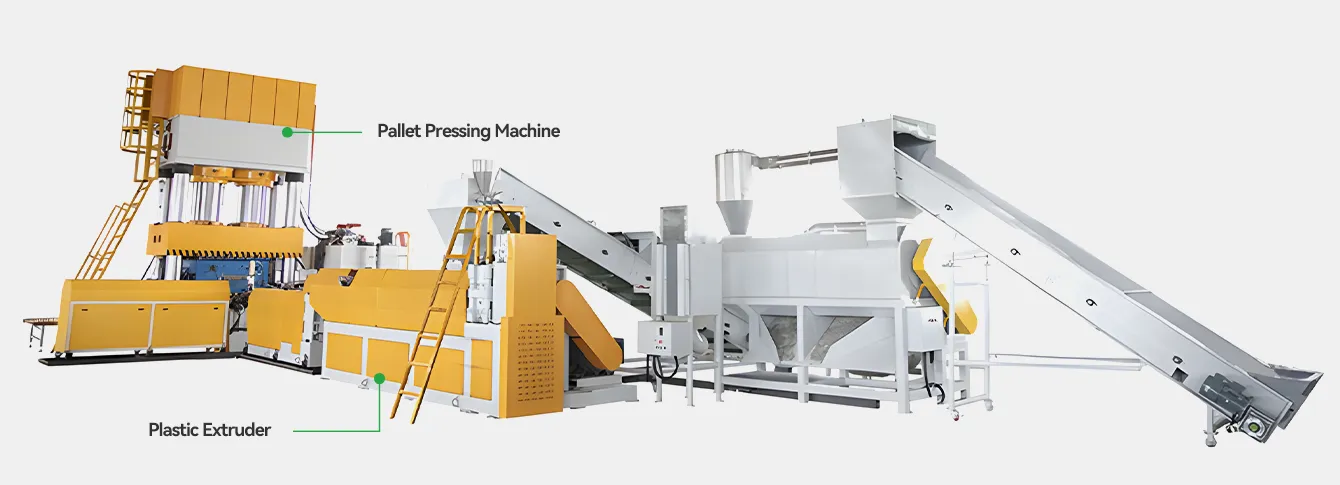

Production Process of One Step Molding Equipment for Waste Plastic

The fully automatic one-step extrusion molding equipment is our company's patented product. Fully automatic film one-step extrusion molding equipment: mainly used for processing various mixed plastic film materials to produce products, mixed waste plastic films: household garbage film, plastic film greenhouse film, paper mill waste plastic film, Marine garbage film, Tetra Pak, food packaging film, etc., after cleaning, drying and processing, do not need to classify, do not need to granulate and directly use plastic film materials to make various products you need.

Waste Plastic Pallet Molding Machine Technical Parameters

Item No.	Frequency (pcs/min)	Press pressure	Output(KG/H)	Total Power(KW)	Product size (length * width	Outside dimension(LWH)	Weight(Ton)
GWJZD-1	1.5-2	315	100-150	45.63	300*300	600014603500	25
GWJZD-2	2-3	1500	350-450	250	1500*1300	1000054006000	85
GWJZD-3	2.5-4	2000	450-550	108	1600*1400	1400055007000	120

Waste Plastic Pallet Molding Machine Video

Waste Plastic Pallet Molding Machine Features and Advantages

One-step waste plastic pallet molding machine can recycle the mixture of different plastic film, rigid plastics and the pellet.
One-step waste plastic pallet molding equipment adopts low pressure injection molding, so the exhaust effect is better, and the raw material doesn’t need very low moisture content.
We use patented or special barrels and screws to ensure sufficient plasticization and dispersion of materials.
We use hydraulic press machine to offer huge pressure for making high density and strength products.
Waste plastic pallet pressing equipment doesn’t require high-quality material, so the material cost is very low.
Plastic pallet pressing machine is not demanding on the mold, and the mold cost is low.
Waste plastic pallet molding machine adopt core technology to make product weight error really small.
Waste plastic pallet pressing machine adopt PLC control system to realize high automation, less labor requirement and high efficiency.
