Waste plastic packaging film pallet pressing line

Food packaging film is difficult to recycle, most of them are composed of a variety of materials, and it is difficult to separate after use, so the use value is greatly reduced. GW ECO-TECH has developed a " waste plastic one-step pallet press line" that can solve the problem of packaging film being difficult to recycle.

Introduce

Food packaging film is used worldwide; there are no exact official statistics to give the exact annual use of food packaging film worldwide now.

However, with the continuous development of the food industry, the demand and use of food packaging film has been growing. It also brings serious environmental pollution problems.

Food packaging film is difficult to recycle, most of them are composed of a variety of materials, and it is difficult to separate after use, so the use value is greatly reduced. GW ECO-TECH has developed a "Hybrid waste plastic one-step pallet press device" that can solve the problem of packaging film being difficult to recycle.

By changing the mold can also produce a variety of different products, such as: tray, manhole cover, flower pot, square brick and so on.

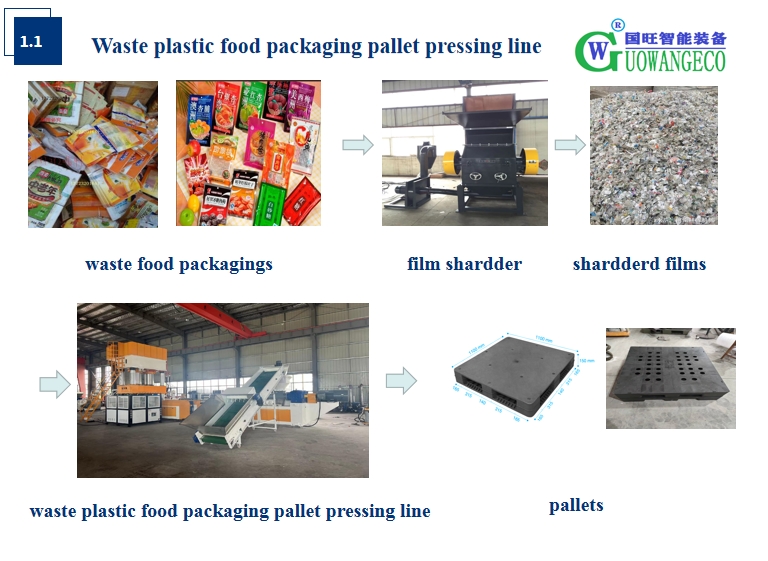

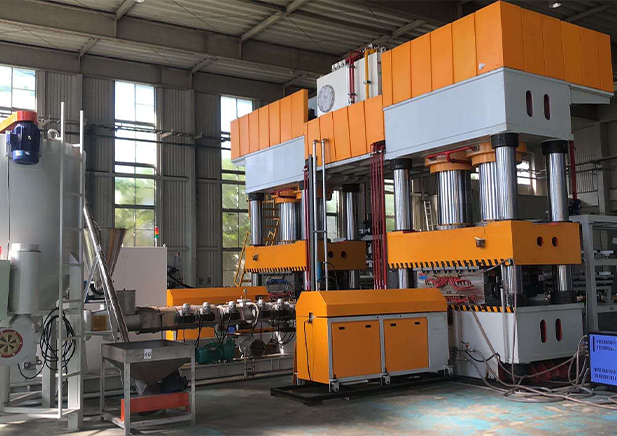

Waste Packaging Plastic Pallet Pressing Line

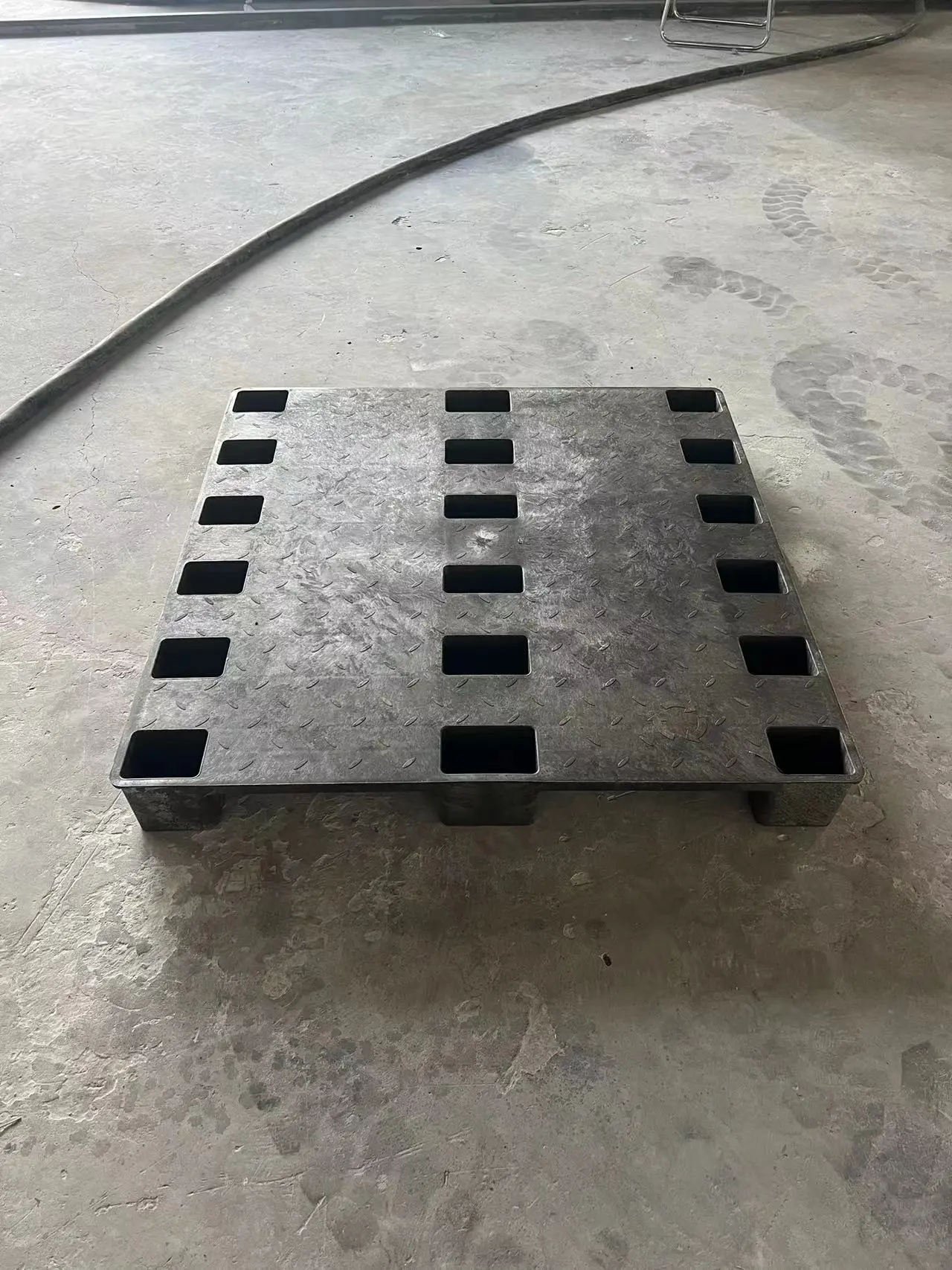

Final Pallets Products Can Be Made


Video of Single-Station Two-Step Pallet Injection Molding Machine for Mixed Waste Hard Plastics

Specifications of Single-Station Two-Step Pallet Extrusion Equipment

Model	Frequency (pcs/min)	Pressure (T)	Output (KG/H)	Total Power (KW)	Products size	Screw diameter（mm）	Outside dimension (LWH)	Weight (Ton)
GWJZD-1	1.5-2	315	100-150	45.63	300*300	90	600014603500	25
GWJZD-2	2-3	1500	350-450	250	1500*1300	65/130	1000054006000	85
GWJZD-3	2-4	2000	400-550	330	1600*1300	75/180	1200058006500	120

Features of Single-Station Two-Step Plastic Pallet Molding Machine_copy20241106

Hard materials include:

Clean: granulated material; iron factory material; industrial machine head material; home appliance material; pallet, etc.
Need to be cleaned: Materials used in life, baskets, toys, pots, etc.; Various barrels, bottles, etc.; Other materials.

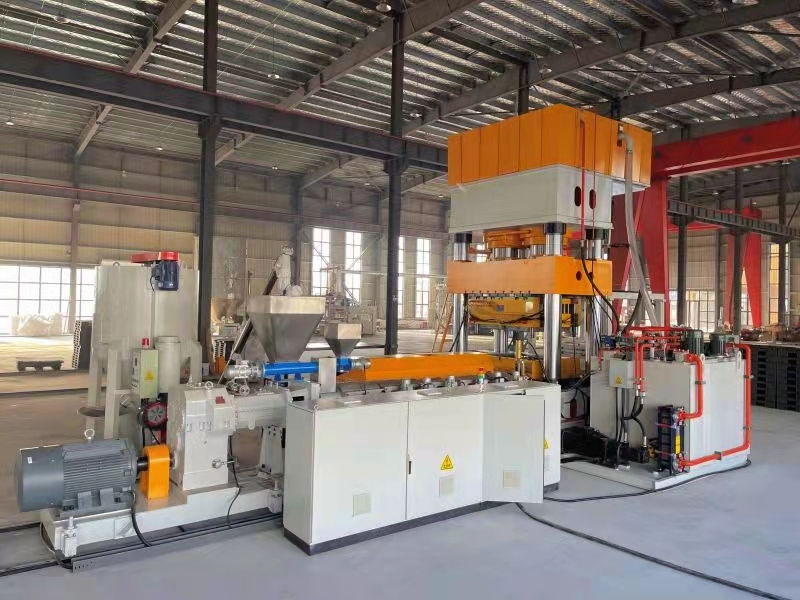

The fully automatic two-step plastic pallet molding equipment adopts the co-rotating conical twin-screw specially designed by our company. The characteristics of the screw are smooth feeding, strong shearing force, and uniform dispersion. Due to the lengthened screw, the plasticization is good, and it is suitable for mixed waste plastics. Through precise design, it is ensured that the weight of each pallet is basically the same, and the error does not exceed 0.1 kg. The whole line is controlled by PLC and has a high degree of automation. One production line can be completed by only one person.
