Waste mulching film pallet pressing line

GW Eco-Tech developed mulch dry cleaning and pallet production lines which can make used mulching to pallets directly etc

Introduce

Mulching is widely used in agricultural production all over the world, bringing remarkable economic benefits, increasing crop yield and improving water use efficiency. But at the same time, the residue of mulch film also brings environmental problems such as "white pollution". With the improvement of people's environmental awareness and the promotion of relevant policies, the treatment of mulch film is put on the agenda, and relevant support policies are introduced, and good results are received.

Due to the large amount of soil and cotton stalk contained in the mulch, it is very difficult to use. Many plastic film cleaning granulation projects, put into operation after the effect is very poor, it is difficult to have benefits, it is difficult to maintain on the brink of bankruptcy.

In view of the environmental pollution caused by mulch, GW Eco-Tech developed mulch dry cleaning and pallet production equipment. In terms of application problems, we have developed a melt plasticizer to solve the plasticization problem and the difficulty of injection molding due to the high soil content and cotton stalk content of dry cleaned mulch. And change the injection molding method to solve the problem of injection mold blocking. Developed automatic production lines and semi-automatic production lines.

Meanwhile, by changing the mold can also produce a variety of different products, such as: tray, manhole cover, flower pot, square brick and so on.

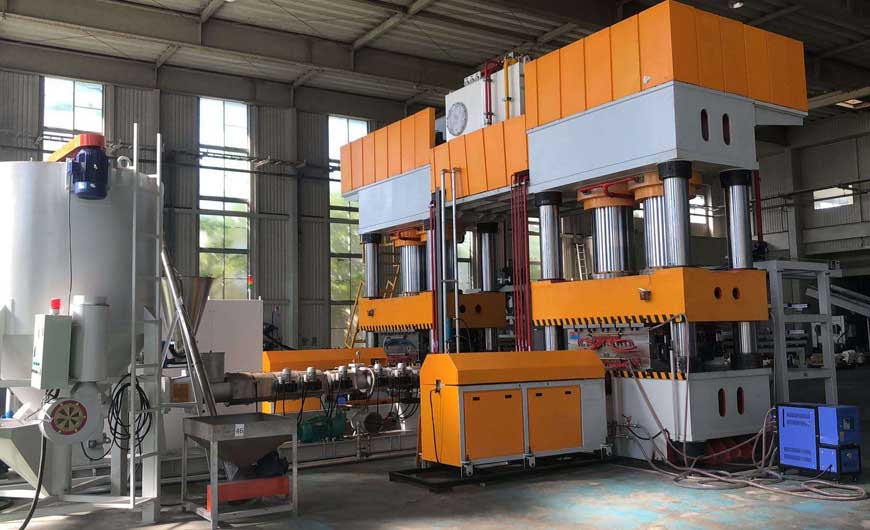

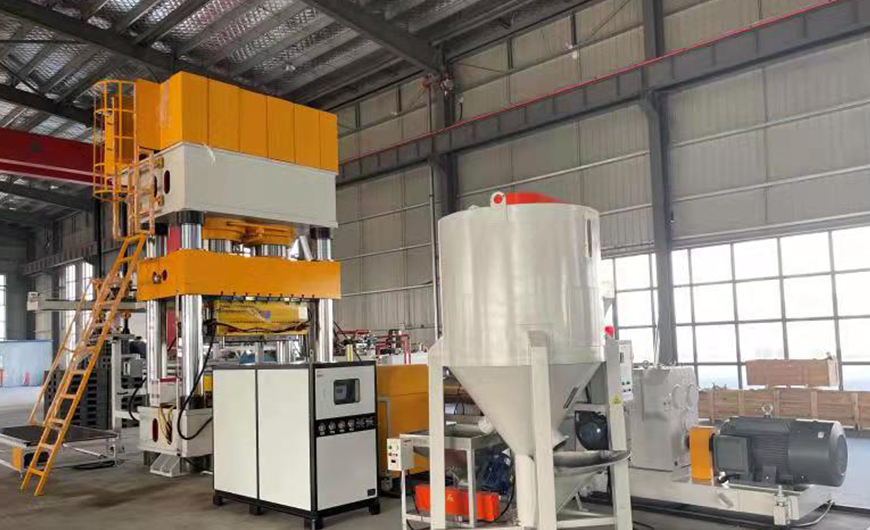

Waste plastic mulch pallet pressing equipment

Final Pallets Products Can Be Made



Video of Double-Station Two-Step Pallet Extrusion Equipment for Mixed Waste Hard Plastics

Specifications of Double-Station Two-Step Pallet Forming Machine

Type

Frequency (pcs/min)

Pressure(T)

Output

(KG/H)

Total Power

(KW)

Products size

Screw diameter（mm）

Outside dimension

(L*W*H)

Weight

(Ton)

GWJZS-1

2-3

1500

350-450

366

1500*1300

75/150

14000*11000*6000

160

GWJZS-2

2.5-4

2000

450-550

450

1600*1400

85/180

16000*23000*7000

220

Double-Station Two-Step Pallet Processing Equipment Application

This recycled plastic molding machine is wide employed in the use and reprocess of assorted mixed waste plastics. One piece of recycled plastic extrusion solves the matter of use differing kinds of plastics, waste textiles, waste board powder, waste plastics from marine garbage and different raw materials. Its biggest feature is that it cannot solely recycle single waste plastics, however additionally recycle mixed waste plastics. Recycled plastic extruder basically solves the matter that mixed waste plastics can't be used. At a similar time, we've got additionally developed the supporting pre-processing instrumentality and post-processing instrumentality. First, every kind of mixed waste recycled plastic extrusion or varied used laborious waste plastics ar crushed (or cleansed, dried, dried) and so another to the instrumentality to form the product we'd like.

Features of Double-Station Two-Step Plastic Pallet Molding Machine

Hard materials include:

Clean: granulated material; iron factory material; industrial machine head material; home appliance material; pallet, etc.;
need to be cleaned: Materials used in life, baskets, toys, pots, etc.; various barrels, bottles, etc.

Difference Between Single-Station Two-Step and Double-Station Two-Step Plastic Pallet Molding Equipment

The fully automatic two-step extrusion molding equipment adopts the co-rotating conical twin-screw specially designed by our company. The characteristics of the screw are smooth feeding, strong shearing force, and uniform dispersion. Due to the lengthened screw, the plasticization is good, and it is suitable for mixed waste plastics. Through precise design, it is ensured that the weight of each pallet is basically the same, and the error does not exceed 0.1 kg. The whole line is controlled by PLC and has a high degree of automation. One production line can be completed by only one person.

The main difference from the single-station equipment is that during the operation of the single-station equipment, the main machine must stop after the material is stored, and can continue to run after waiting for injection, which is a waste for the extruder. In the process of double-station operation, the main machine keeps injecting materials into the two storage tanks alternately. The double-station is twice as efficient as the single-station, and the price is 3/4 of the two single-stations. Thereby, the efficiency is improved, the purchase cost is reduced, the floor area is reduced, and the labor cost is reduced.
